392 CHRYSLER BILLET CYLINDER HEADS

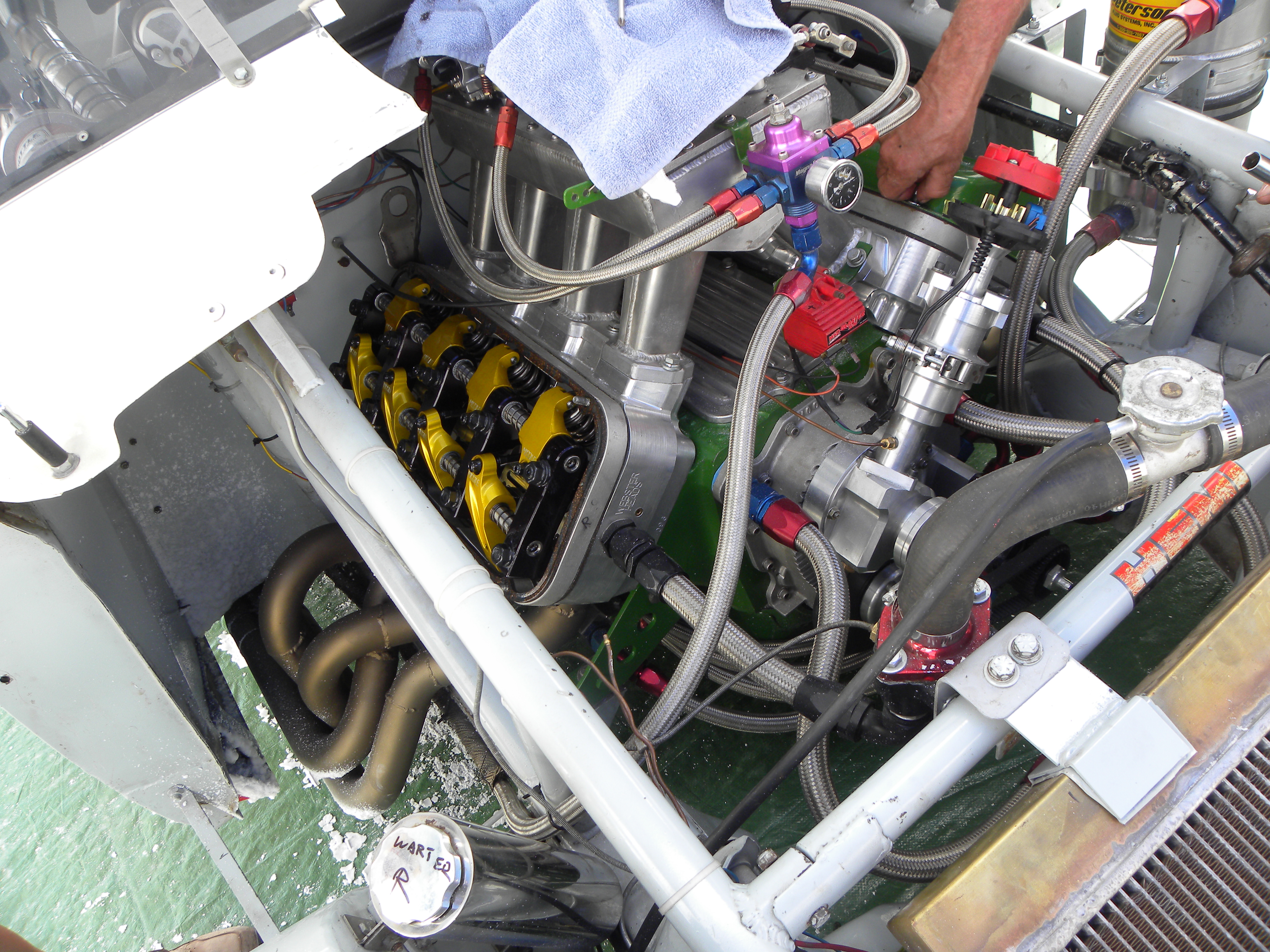

HELPED POWER THE "HIGH SPEED MOTOR SPORTS" CAR TO TWO WORLD CHAMPIONSHIPS

AND CURRENT ALL TIME RECORD FOR NTF AT 5.490 ET

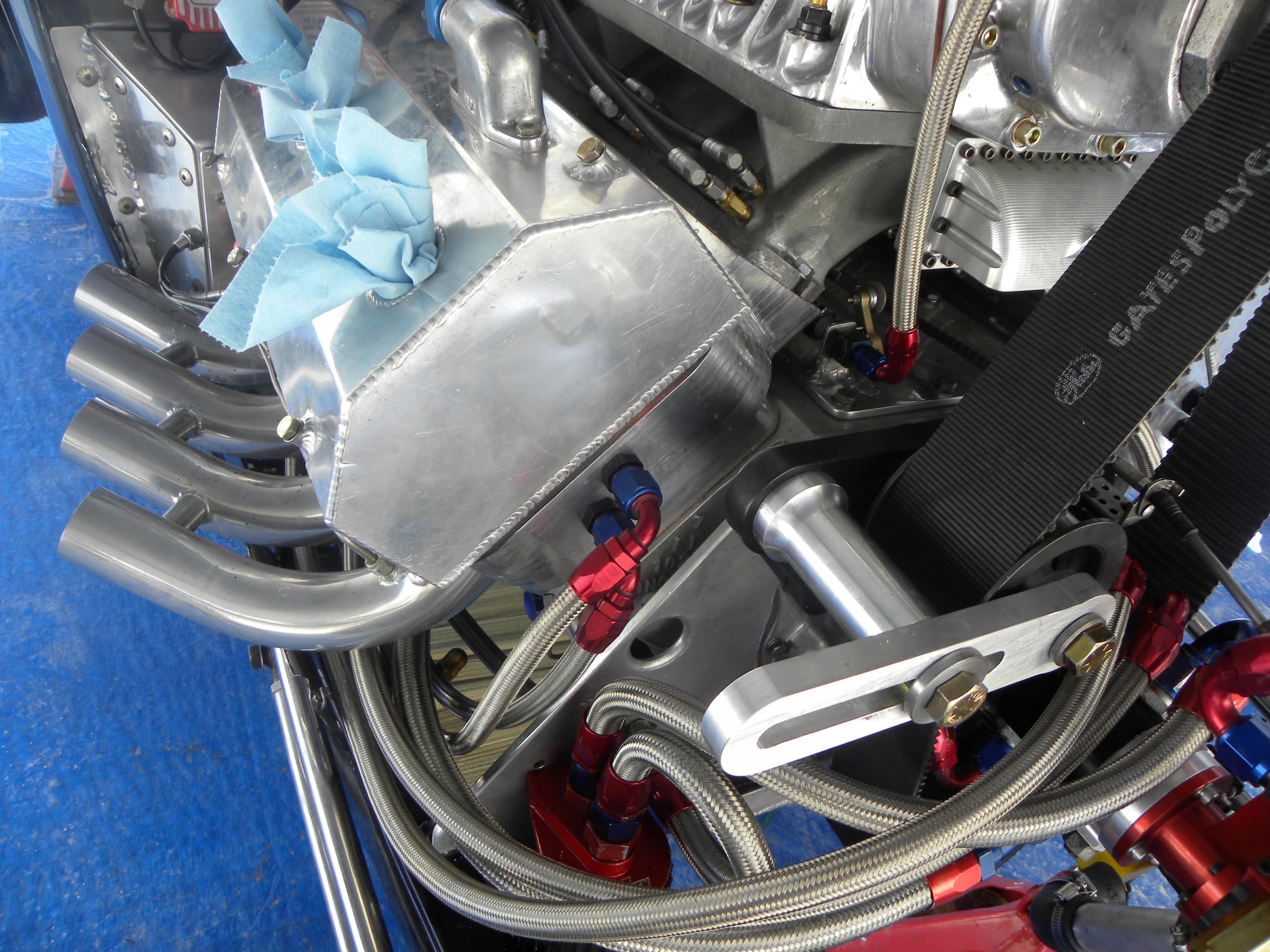

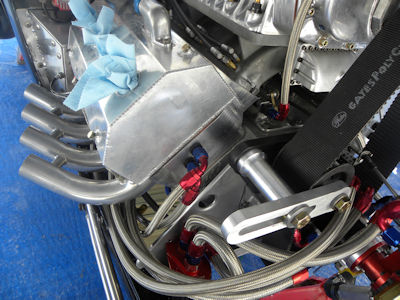

Webster Billet 392 Hemi heads are designed to meet the extreme demands of a Nostalgia Top Fuel Engine. They have track proven results in many Blown Fuel and Blown Alcohol Drag Racing, and Land Speed Traials.

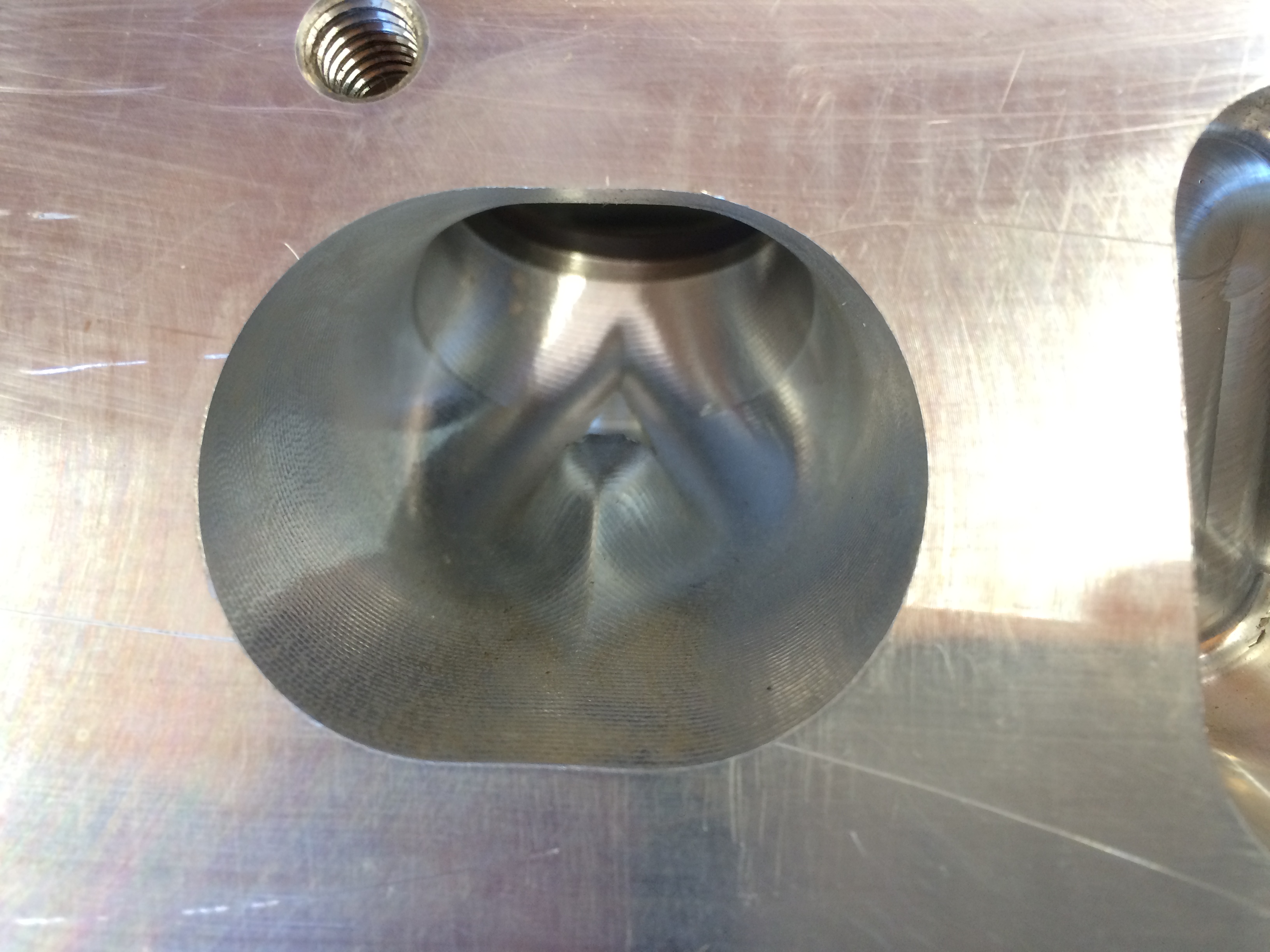

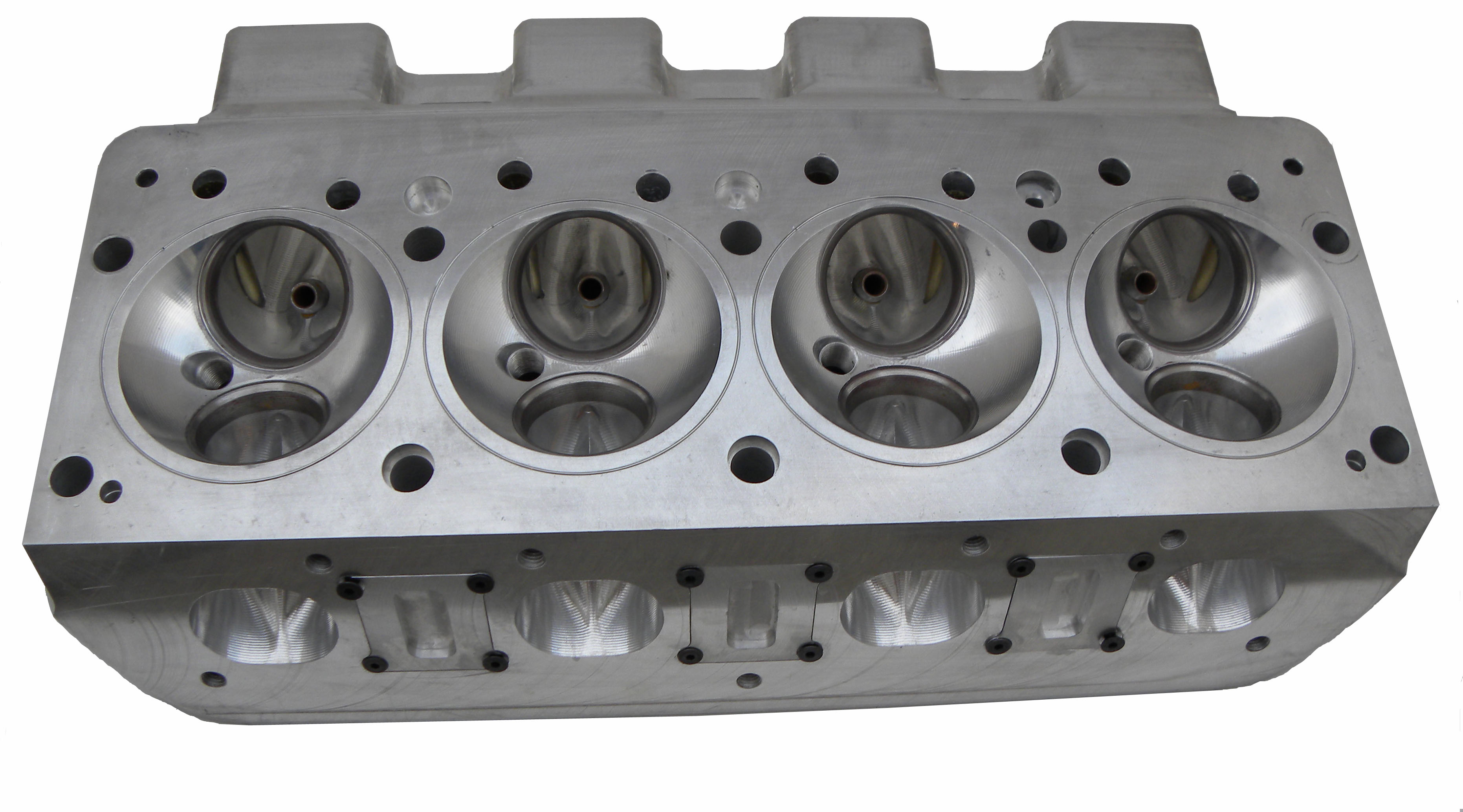

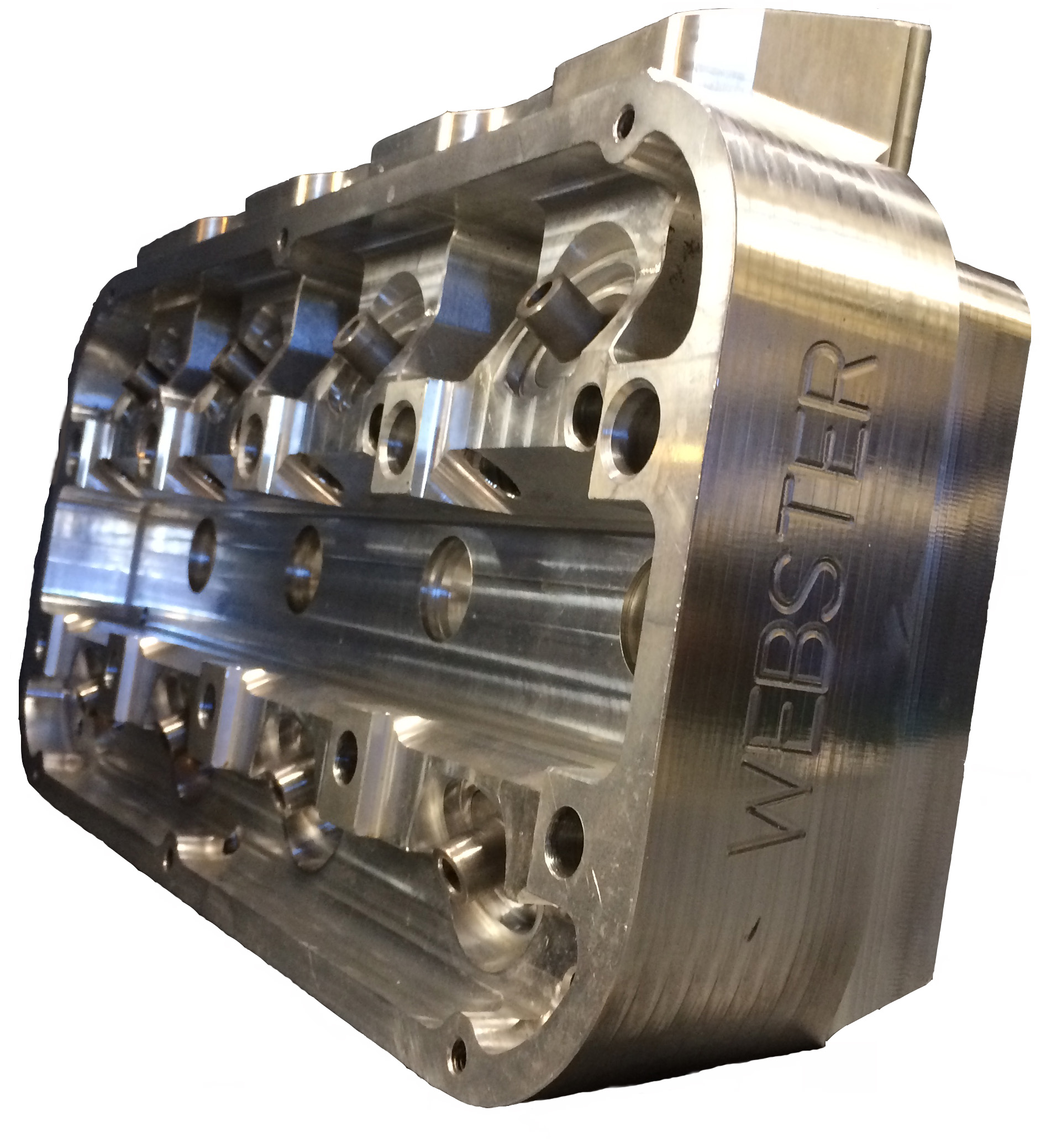

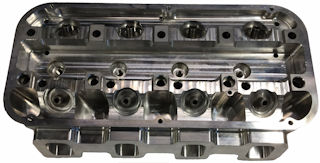

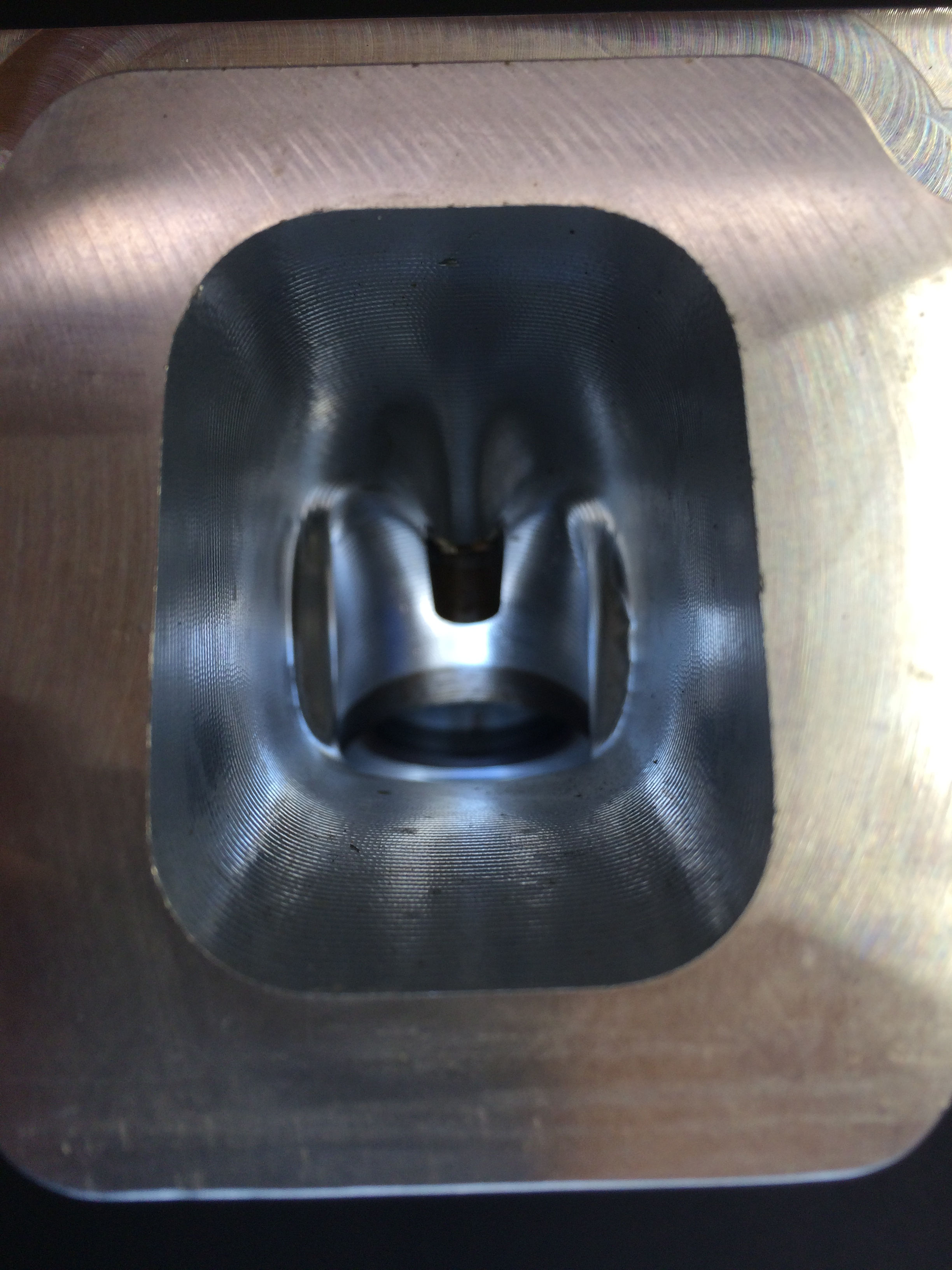

Webster 392 billet early hemi cylinder heads are machined from a solid billet of 6061 T6 aluminum. The combustion chambers are the same size as the original Chrysler 331 early hemi cylinder heads. The valve angles are same as original Chrysler early hemi cylinder heads, as well as the pushrod hole locations and angles. We offer 3 intake manifold bolt patterns, the original 8 bolt pattern and two versions of a 3 bolt pattern. The exhaust bolt pattern is the original Chrysler 7 bolt pattern. The intake and exhaust ports are fully CNC machined for consistency and performance.

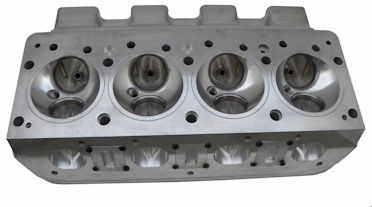

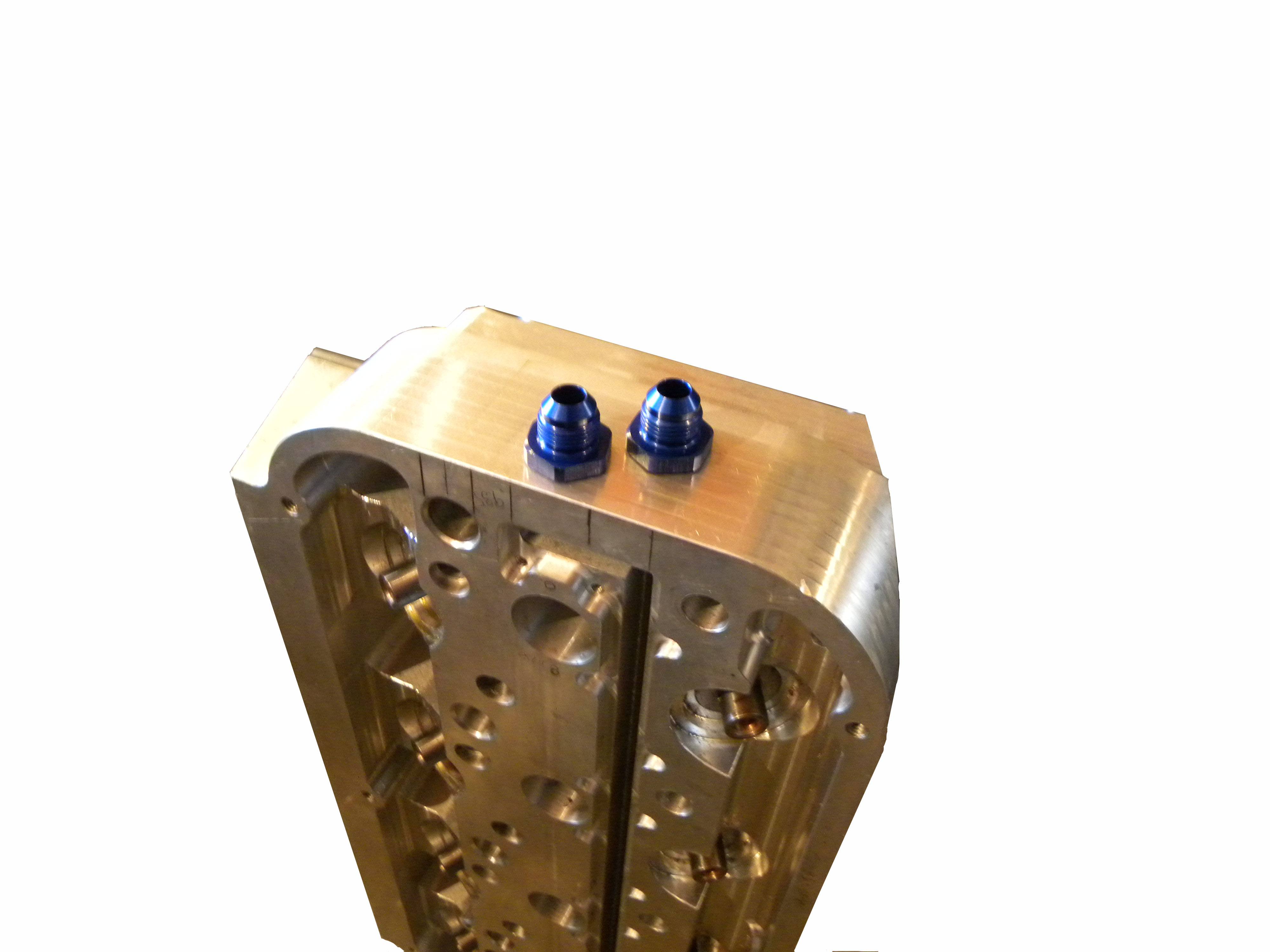

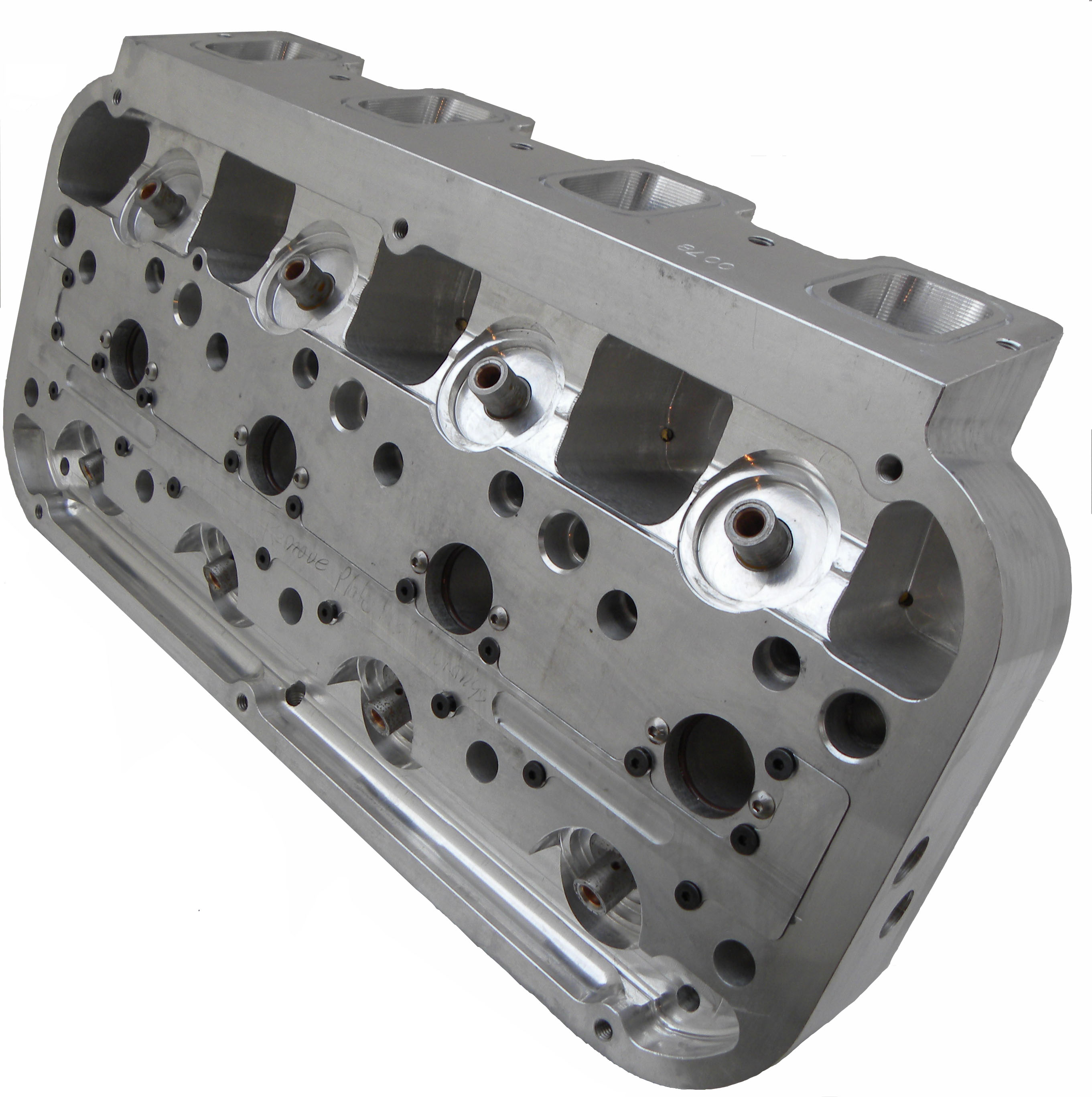

392 BILLET CYLINDER HEADS WITH WATER PASSAGES STYLE 1

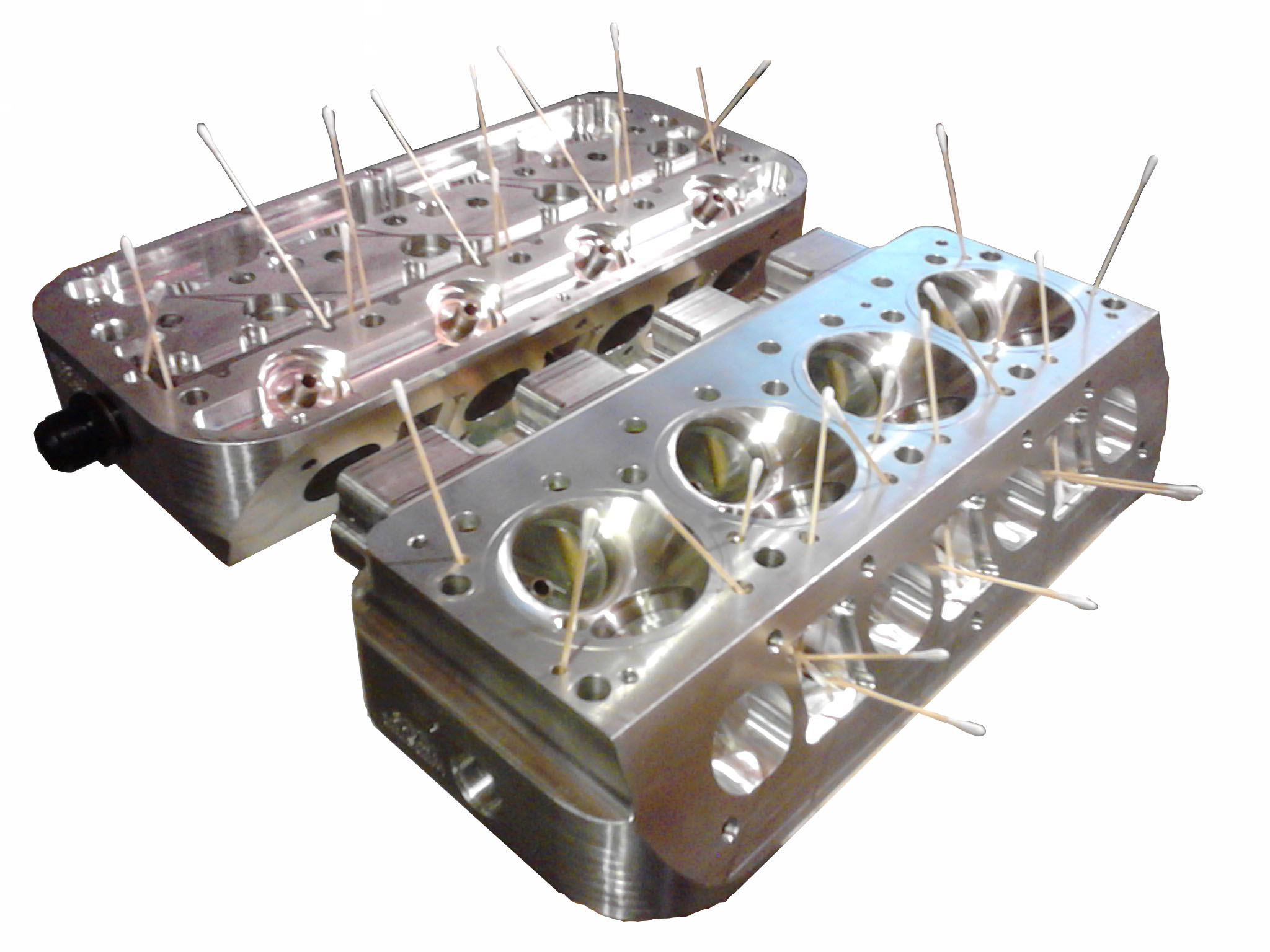

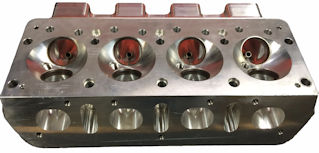

392 BILLET CYLINDER HEADS WITH WATER PASSAGES STYLE 2
